AMD Socket A/462:
AMD Athlon XP 3200+, Athlon 1.4Ghz and beyond

Intel Socket 370:
Intel Pentium III 1.4Ghz and beyond

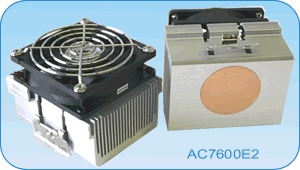

AC7600E2 Front View


Dimensions
 70(L)X70(W)X20(H)mm (2.76"X2.76"X0.79")
    Bearing Dual Ball Bearing
    Rated Voltage 12 (V)
    Max. Air Flow 36.2 (CFM)
    Max. Air Pressure 5.7 mmH2O
    Noise 37.7 dB(A)
    Speed 4300 RPM+/-10%
    Predicated Life 50,000 (Hours)
      Connector 3 Pin Molex 2695


AC7600E2 Side View


    Dimensions 80(L)X62(W)X60(H)mm (3.15"X2.44"X1.57")
    Material Copper and Aluminum Alloy 6063-T5


    Dimensions 80(L)X62(W)X60(H)mm (3.15"X2.44"X2.36")

  Weight 0.77Lbs (352G)


AC7600E2 Bottom View
   Thermal Resistance 0.33°C/W
    Strength
UL, CS, TUV and CE approved fan
ISO 9001 certified fan manufacturer
Dual ball bearing system and enhanced high speed fan with high volume air flow,
strong air pressure and reasonable noise ratio (dB).
Copper core base designed heat sink to achieve lower thermal resistance.
    Interface Material T725 Phase Change of Chomerics® (AMD® Suggested) / Thermal Compound
    Clip High force steel with triple-tab holder designed to snap on easily and securely.
      Warranty 2 years

        Specifications are subject to change without notice.
        Intel and Pentium are registered trademarks of Intel Corporation.
        AMD and AMD Athlon are registered trademarks of Advanced Micro Devices, Inc.
        Chomerics is a registered trademark of Chomerics, Parker Hannifin Corp.
